From box to first light in five steps.
Mount, power, and pair your LIFX Smart Mirror. Follow the steps in order, or jump to the part you need. Everything below works on iOS and Android.
Mirror Setup
05 steps
Everything you need to mount and power your mirror is included in the box — whether you choose the plug-in or hardwire installation option.

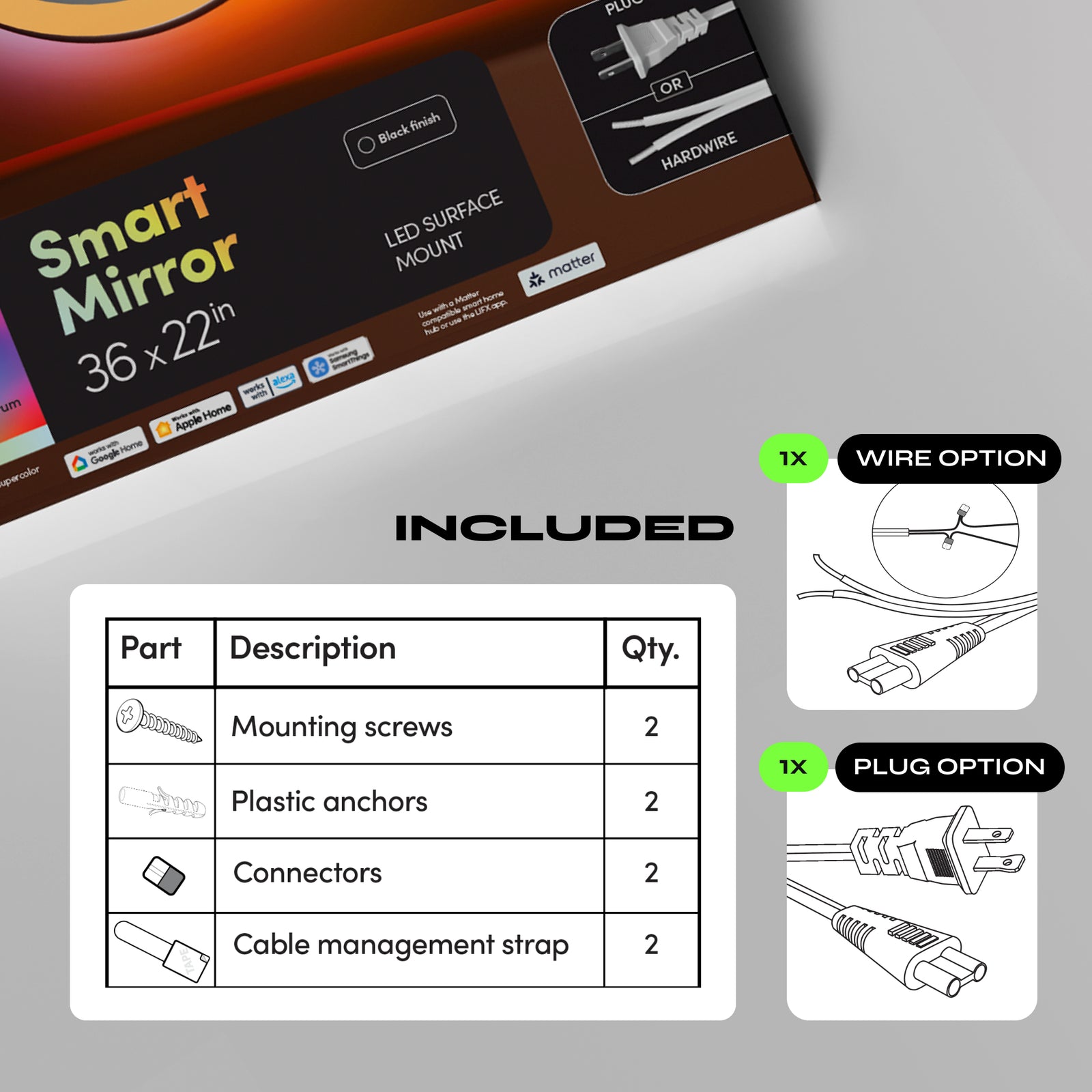

In the box:
- LIFX Smart Mirror
- Mounting screws
- Plastic anchors
- Connectors
- Cable management straps
- Plug-in cable
- Hardwire pigtail

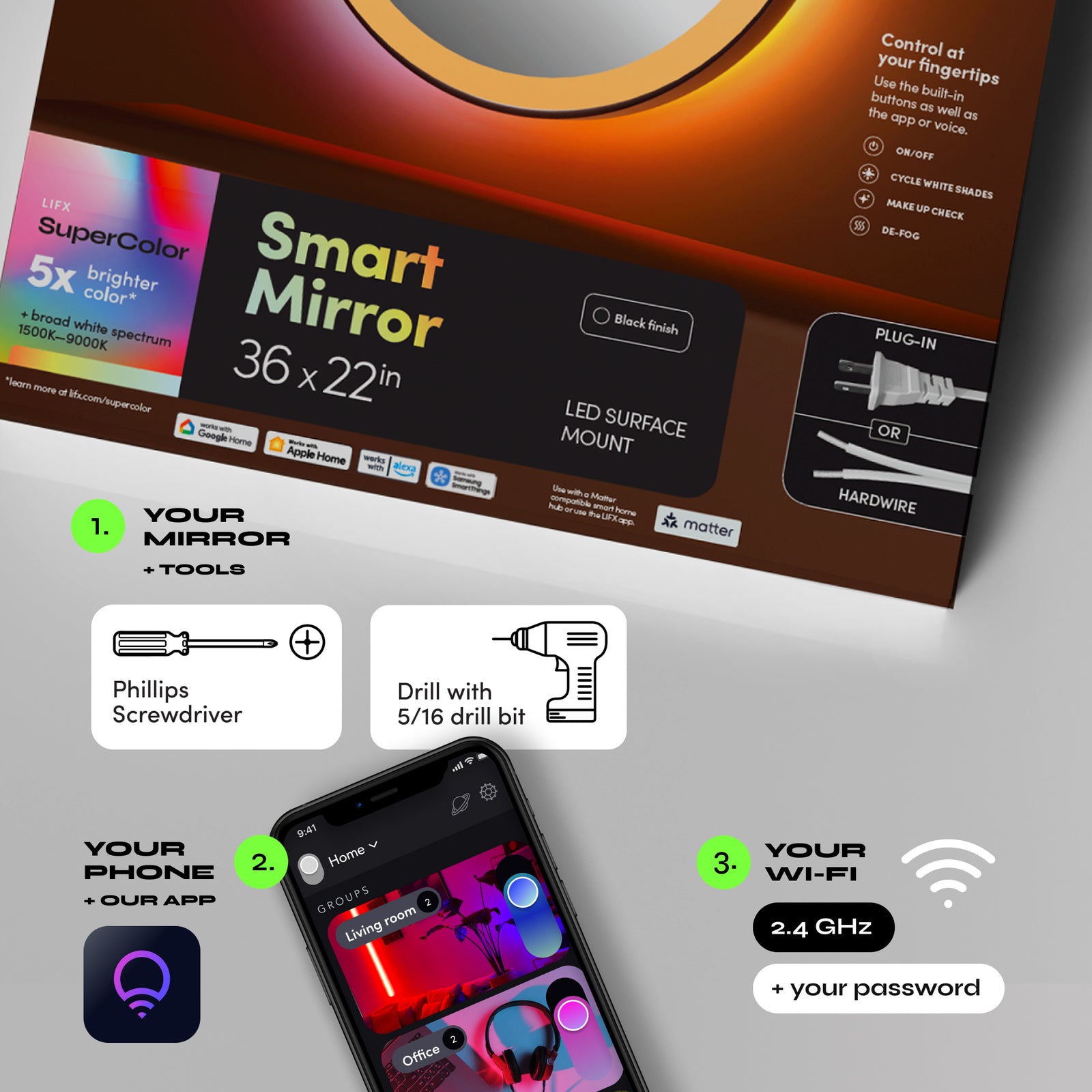

You'll Need:
- A smartphone (iOS 18.0+ or Android 8.1+)
- The LIFX app (download from App Store or Google Play)
- A 2.4 GHz Wi-Fi network (Most smart devices require 2.4 GHz. If your router combines 2.4 GHz and 5 GHz, that's usually fine.)
- Your Wi-Fi password
- A Phillips head screwdriver
- A drill with a 5/16" drill bit
Important Notes:
- Keep your phone near the mirror during setup.
- Make sure Bluetooth is enabled on your phone.
- Ensure your phone is connected to the same Wi-Fi network you want the mirror to use.
Hardwiring
Turn off power at the circuit breaker before installation. If you're unsure, consult a qualified electrician.
Powering the mirror (choose one)
- Plug-in. Connect the included plug cable into one of the ports on the back, route it through one of the 4 cable channels, and plug into a wall outlet
- Hardwire. Connect the hardwire pigtail to the product and wire to your junction box (Live/Load + Neutral; no ground needed). Always turn off mains power first.
Hanging orientation (choose one)
- Vertical. Mount screws 10" apart
- Horizontal. Mount screws 14" apart
Installation steps
- Mark two level points on the wall using the spacing above.
- Drill holes with a 5/16" bit and insert the included anchors (suitable for drywall; use alternative hardware for other surfaces).
- Screw in the mounting screws, leaving a small gap between screw head and wall.
- Align the mirror's brackets to the screws, fit through the '+' cutout, then lower the fixture to lock it in place.
Tips
Don't route the cable behind the mirror where it can be crushed.
If the connection point is above the mirror's midpoint, use the wire hook to secure it during installation.
To factory reset, hold the first three buttons for 10 seconds until the light cycles through colors.
Select your device below to get step-by-step setup instructions tailored to your phone. We recommend using the Matter QR code method for the quickest and most reliable connection — you'll find the QR code in your product manual or printed on the back of your smart mirror.
Choose your OS
On iOS, you can set up in two ways
We recommend Matter for the most reliable setup. Use Wi-Fi if you've lost the QR code or can't access it.
iOS Onboarding via Matter QR code
- Plug in the light and power it on.
- Open the LIFX app and tap the + icon in the bottom right.
- Tap New Product, then New Light.
- Tap Scan QR Code and use the camera to scan. Alternatively, type the 11-digit Matter code from the product (or Manual).
- Tap Add to LIFX and Choose Home from the list.
- Wait for the Home app to connect to the light.
- Select a Location (e.g. Bedroom) and give it a Name (e.g. Bedside Lamp).
- You're all set.
iOS Onboarding via WiFi
- Plug in the light and power it on.
- Open the LIFX app and tap the + icon in the bottom right.
- Tap New Product, then New Light.
- Tap Set Up Device Manually.
- Go to your phone's Wi-Fi Settings:Matter: From Other Networks, select the LIFX Light.HomeKit: LIFX appears under Set Up New Device; after 15 minutes it moves to Other Networks. Select the LIFX Light from there.
- Return to the LIFX app.
- Select your Wi-Fi and enter the password.
- Wait for the light to connect via Wi-Fi (up to a minute).
- Finish setup by selecting a Group and giving it a Name.
- Opt in or out of any Suggested Routines.
- You're all set.
On Android, you can set up in two ways
We recommend Matter for the most reliable setup. Use Wi-Fi if you've lost the QR code or can't access it.
Android onboarding via Matter QR code
- Plug in the light and power it on.
- Open the LIFX app and tap the + icon in the bottom right.
- Tap New Product, then New Light.
- Tap Scan QR Code and use the camera to scan. Alternatively, type the 11-digit Matter code from the product (or Manual).
- Tap Add to LIFX and Choose Home from the list.
- Wait for the Home app to connect to the light.
- Select a Location (e.g. Bedroom) and give it a Name (e.g. Bedside Lamp).
- You're all set.
Android onboarding via Wi-Fi
- Plug in the light and power it on.
- Open the LIFX app and tap the + icon in the bottom right.
- Tap New Product, then New Light.
- Tap Set Up Device Manually.
- Select your new LIFX light when it appears.
- Select your Wi-Fi and enter the password.
- Wait for the light to connect via Wi-Fi (up to a minute).
- Finish setup by selecting a Group and giving it a Name.
- Opt in or out of any Suggested Routines.
- You're all set.
Accessing Button Setup
- From the Mirror Control Screen, tap ⋯ then select Light Settings
- Tap Buttons Setup — you'll see all 4 mirror buttons listed
Button overview
- Defog is not configurable
- Power, Sun Cycle, and FX buttons can all be customised
Factory defaults
- Power Button — Single Press: On/Off
- Sun Cycle Button — Single Press: Step through CCT colour temperature (Make-up Check).
- FX Button — Single Press: Cycle through FX.
Configuring a button
- Tap the button you want to configure (e.g. Sun Cycle Button).
- Choose the press type you want to assign: Single Press, Double Press, or Long Press.
- Set the Target — control the mirror itself, or other LIFX products, groups, or locations.
- Set the Action — toggle on/off, change brightness, switch colours, and more. Some actions run locally; others use the LIFX Cloud.
- Tap Save — your button configuration is complete.
Tips
To control other Matter devices (Apple Home, Samsung SmartThings, etc.), set up button actions inside your Matter ecosystem app.
If a button triggers both LIFX and Matter devices, you can disable the LIFX action on that button to prevent duplicate triggers.
